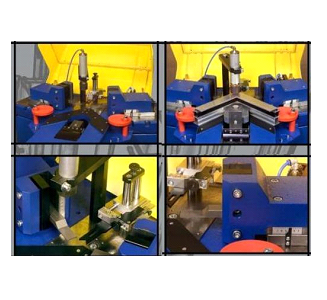

GAMMA- CRIMPING MACHINE

  • image
  • image
  • image
  • image

Description:

DESCRIPTION -

Strength and resistance, typical features of machines tools made of cast iron to absorb the forces without bending.

The crimping heads are driver by a sole mechanical control that guarantees the simultaneity of movements.

The bracing clamp is hydraulically controlled to assure the maximal seal during the crimping operation.

The heads are longitudinally adjustable and the adjusting is very easy thanks to the system of metrical scales.

All this makes Gamma solid, precise and lasting.



Maximum crimping force 3500 kgp.

Knife operating stroke 10,5 mm.

Bracing clamp stroke 80 mm.

Maximum profile height 100 mm.

Regulation of crimping point from 30 until 60 mm.

Control of the bracing clamp in his work position Hydraulic.

Nominal pressure 7 bar.

Maximum pressure 10 bar.

Triangular end of bracing clamp 30 mm.

Profiles support right and left 1 pair.

OVER ALL DIMENSION AND WEIGHT

Maximum height 1200 mm.

Width 850 mm.

Lenght 770 mm.

Weight 265 Kg.
