Description:
DESCRIPTION
Main features
1. It has features of easy operation, reliable performance, advanced technique and convenience maintenance etc
2. Used for connector of aluminum profile cutting, and for plastic profile cutting
3. Imported carbide saw blade give high speed, high efficiency and accuracy processing
4. Linear motion bearings give less resistance force and high processing accuracy
5. Siemence controller, automatic feed, efficiency, accuracy and servo motor system for length movement having a maximum stroke of 600mm.
6. Suitable for large volume production
7. High degree of automation, clamping, saw handling adopts pneumatic control system, the operation is convenient, safe and reliable, high productivity.
Main Features:
Cutting Motor Power 3kw
Input voltage 440V 50hz
Main Rotary Speed 2850r/min

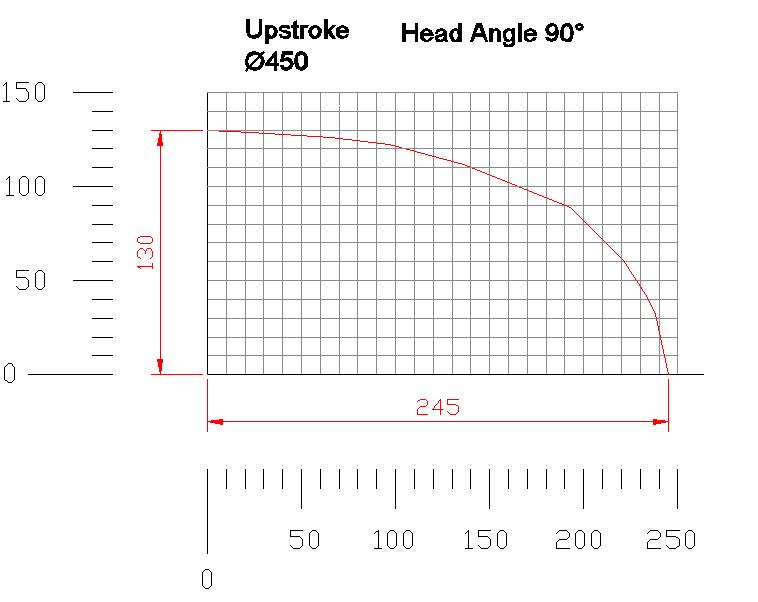

Cutter Diameter Inner 30mm Outside 450mm
Contour dimension 2100*1100*1500mm
Weight 750kgs
