Description:
DESCRIPTION -

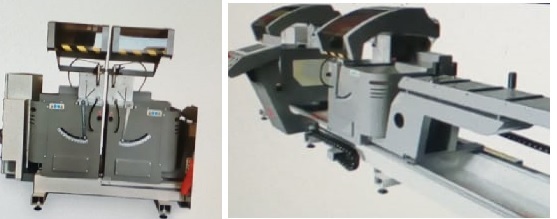

Double head cutting off machine with rising blades for mitre cuts. With fixed unit on the left side and motorized movable unit on the right side.
Pneumatic tilting range inwards 90/45 .
Equipped with double action vertical clamps, full protection of the saw blades, movable side support 2.5mts, pneumatic spray mist lubrication, complete with 2x TCT Saw Blades dia 500 mm.
Motors 2.2 kW each. Maximum cutting length is 5 meters.
TECHNICAL DATA -
Upward blade rising 3 HP 2.2 kW three phase motors Blade speed 2800 rpm Blade tilting from 90 to 45 inwards Intermediate angles obtained through mechanical stops.
Mobile carriage movement through brushless motor Max mobile carriage speed 20 m/min Hydropneumatic adjustable blades rising 2.5 m mobile head conveyor Min cutting length between the two heads 420 mm with heads at 90 Max cutting length between the two head 4850 mm with heads at 90.
EQUIPPED WITH ELECTRONIC POSITIONER ABLE TO.
Manage single cuts .Also overlength and underlength cuts by program.
Memorize 100 profile codes and their values.
Memorize cutting list already calculated via keyboard.
Manage frame typologies .
Metric ruler with reading index .
Memorize cutting list already calculated by USB.
