Description:

DESCRIPION

Main features

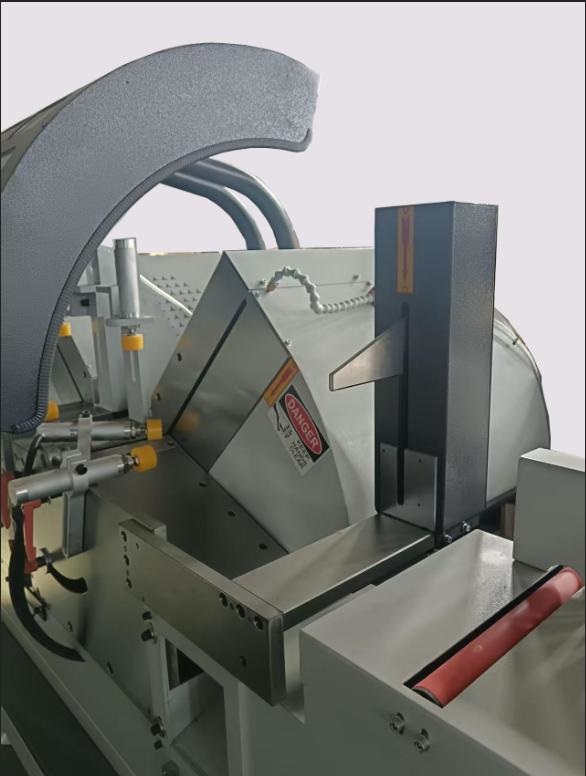

1. It is used for cutting aluminum alloy and curtain wall profile

2. It has features of high efficiency, perfect safe guards and is suitable for large-scale production

3. The CNC technology can cut different standards profile automatically

4. Adopt steel structure design to ensure excellent reliability, no easy to be out of shape

5. The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth

6. The imported guide rails and the linear motion pair and ball screw can realize high precision and accurate location

7. The head return automatically

8. The two-way location and clamping features with high precision and steadiness

9. The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere

10. The cutting angle can change in +45 , 90 DEGREES . The head movement is controlled by PLC and movement is automatic tilting of heads with pnuematic cylinder’s, servo motor, ball screw for lenght movement , hydro pneumatic cylinder for blade feeding , Clamping cylinder is for profile clamping,Processing accuracy Repeatablility in locating length ±0.2mm . The height variation while cutting in 45 degree is controlled by height measuring device since it is outside 45 degree cutting machine. Cutting profile surface plane in tolerance 0.10mm . Cutting angle tolerance ±5'.
