REMIX 550 GE UPSTROKE SAW 4 METER

Country:

Description:

DESCRIPTION -

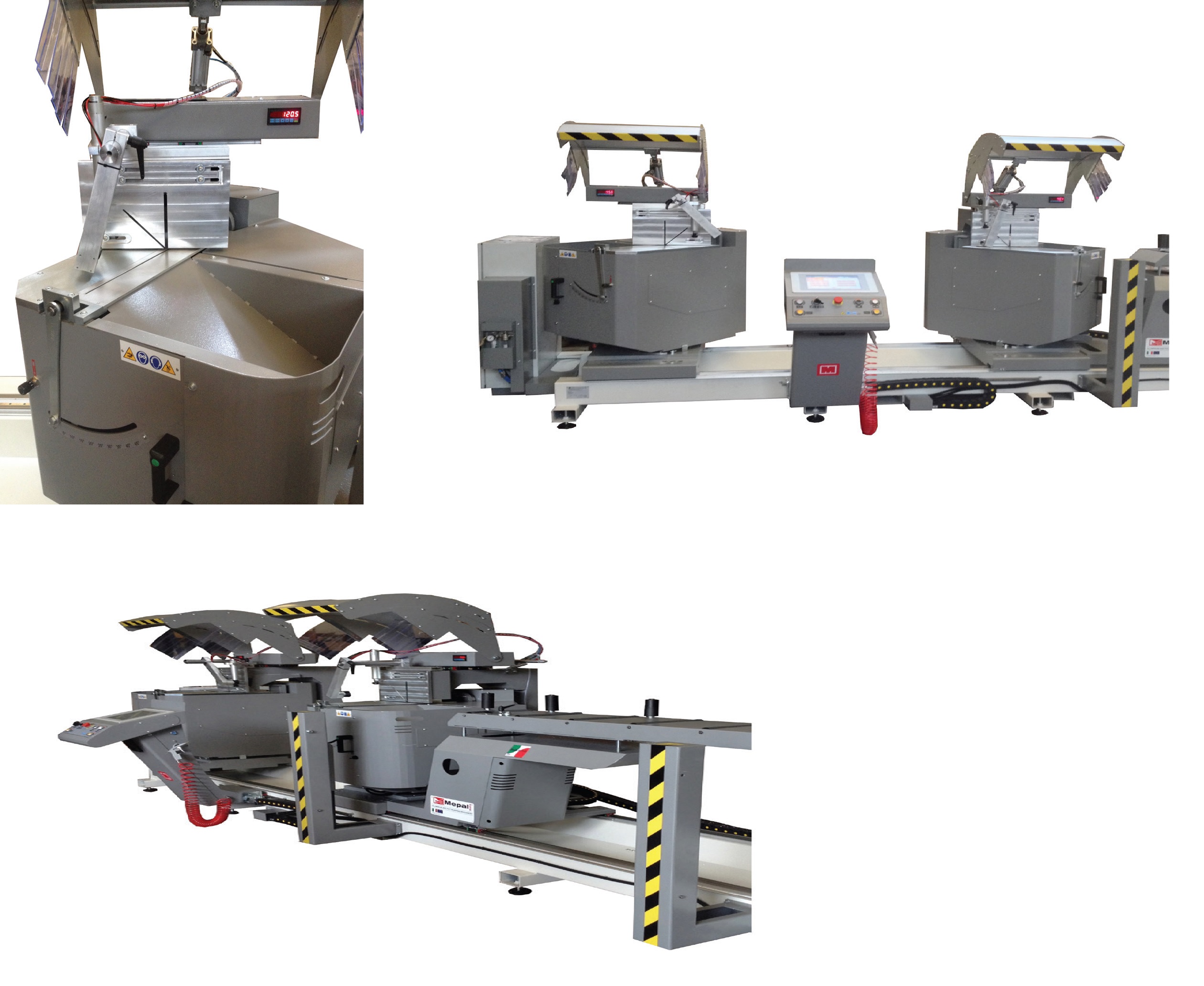

REMIX 550 DOUBLE COMPOUND MITER SAW FOR ALUMINUM AND PVC

The REMIX 550 double compound up cut miter saw with rising blades is designed for precision compound miter cuts with a fixed unit on the left side and motorized movable unit on the right side and pivoting range up to 140outwards and up to 20inwards and digital display, the unit deliversunsurpassed versatility.

It also has pneumatic tilting range inwards 90°/45° and is equipped with double acting vertical clamps,full protection of the saw blades movable side support of 2,5m, pneumatic spray mist lubrication and complete with 2 TCT Saw Blades of Ø550 mm, and N. 2 3 kW motors.

TECHNICAL SPECIFICATIONS:
• Saw blades in TCT Ø550 mm
• Incremental Cutting
• Blade rising with hydro- pneumatic cylinder
• Blade rotation positioning angles 90° to 20° internal and from 90°
to 140° external
• Blade tilting positioning angles from 90° to 45° internal
• Maximum cutting length: 4000 mm/ 5000 mm
• Over length cuts are possible with included software
• Minimum cutting length with heads at 90° is 500 mm
• Under minimum cuts are possible with included software
• Spray mist blade lubrication system
• Blade rotation, tilting and rising on precision bearings
• Mobile carriage movement by Digital Brushless Motor

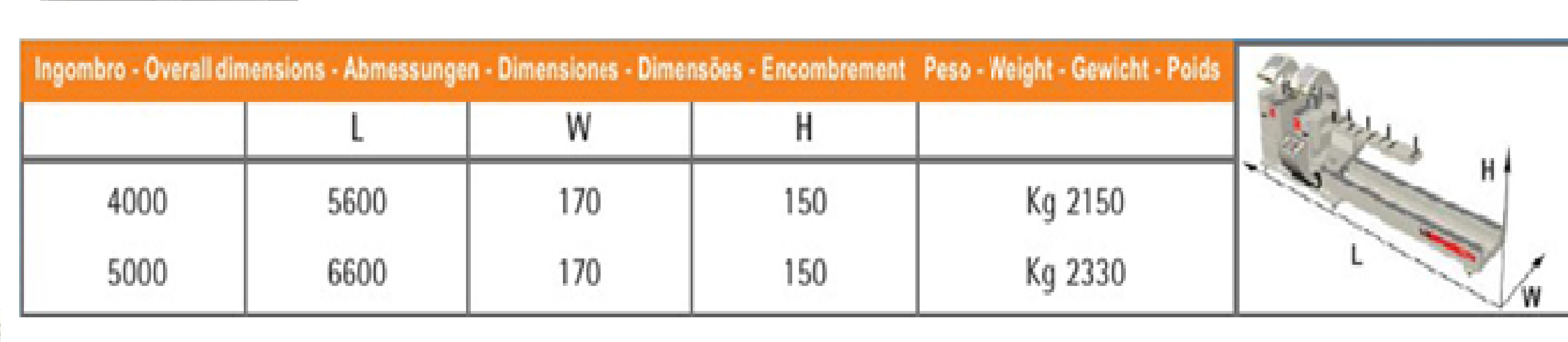

Specification
Video

COMPONENTS SUPPLIED:
• Vertical and horizontal clamps 1 ea. per head
• Cutting area completely protected
• Pneumatically actuated guards
• Pneumatic mist spray
• Movable roller side support
• Air gun
• Windows 10 TouchScreen CNC control
• Cutting list capabilities • TCT Saw blade Ø550 mm
