Description:
TECHNICAL DATA -

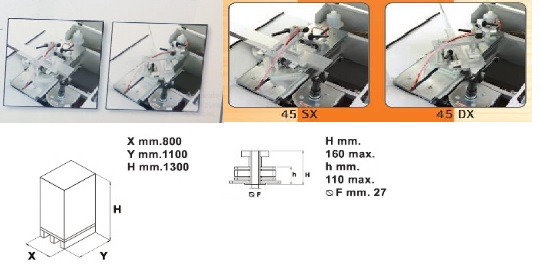

Horizontal end milling with manual feeding, milling at 45/90/-45 and intermediate degrees with quick change of the cutter block.
Equipped with spindle at 2800rpm with usueful stoke 390mm. Max cutter diameter 200mm.
Threephase motor 2.5 HP.
Working pressure 7 bar.
Overall dimensons 104x72x130 cm.

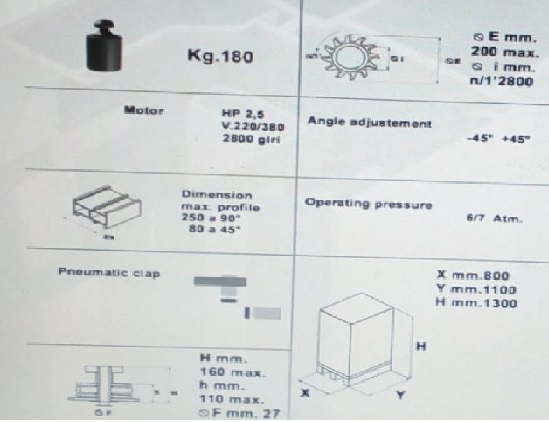

Widht 140 kg. 180 Kg., Motor HP 2.5, V.220/380 2800 giri Blade Emm. 200 max. I mm.n/139 -2800
Dimensions Max Profile 250 a 90, 80 a 45
Operating pressure 6/7 Atm. Pneumatic clamps
