Description:
Main Features:

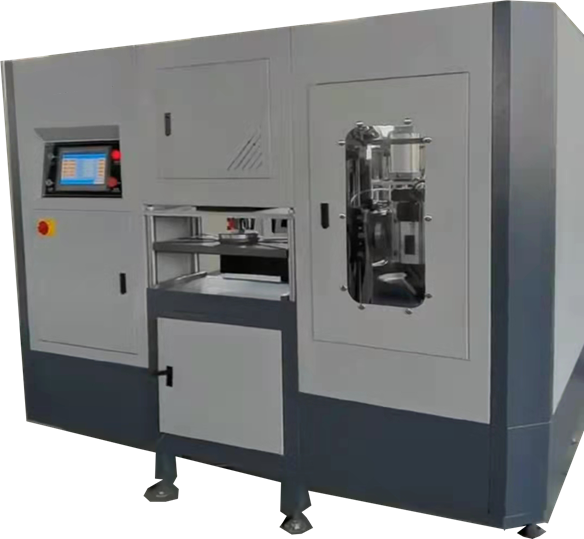

1.The CNC four-axis end milling machine is used for end milling of industrial aluminum profiles and window aluminum profiles. Automatic tool adjustment eliminates the need for manual tool adjustment.
2.It features profile fixing and tool movement, enabling the processing of multiple batches of long profiles.
3.The tool can process any size, with an adjustable range of 180°.
4.Continuous feed can mill the required tenon dimensions on the profile end face. 5.Custom-made tools with special thicknesses can be provided to meet diverse tenon size requirements.
6.The feed system uses a servo motor, offering adjustable speed, smooth feed, and high machining accuracy.
Technical Details:
|
Model
|
LXD-CNC-400-4A
|
|
Power Supply
|
380V 50Hz
|
|
Input Power
|
6kw
|
|
Working Pressure
|
0.5~0.8MPa
|
|
Air Consumption
|
150L/min
|
|
Motor Speed
|
3000r/min
|
|
Blade Feeding Stroke
|
1250mm
|
|
Working Table Size
|
510×480mm
|
|
Saw Blade Size
|
Φ400mm
|
