DESCRIPTION -

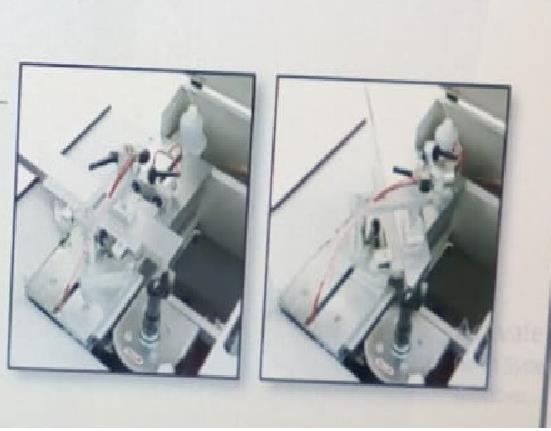

Horizontal end milling with manual feeding, milling at 45/90/-45 and intermediate degrees with quick change of the cutter block.

Equipped with spindle at 2800rpm with usueful stoke 390mm. Max cutter diameter 200mm.

Threephase motor 2.5 HP. Working pressure 7 bar.

Overall dimensons 104x72x130 cm.

Widht 140 kg. 180 Kg.

Motor: HP 2.5, V.220/380 2800 giri Blade Emm. 200 max. I mm. n/12800

Dimensions Max Profile 250 a 90 ,80 45.operating pressure 6/7 Atm. Pneumatic clamps.

STANDARD EQUIPMENT -

Pneumatic claming set -Turret stop for presetting 6 milling deps - Pneumatic lubrication lubrication Nr. 1 cutter block 32mm.

Air gun - Air filter - Full protection guard - Service spanners.

OPTIONALS -

Single phase motor - Cutter block 32mm - Emulsified cutting oil 20 lt
