SINGLE HEAD AIR CUT DIA 500 CNC CUTTING SAW



Description:

MAIN FEATURE

1. Used for Alumnium profile cutting In 90 degree

2. imported carbide saw blade give high speed, high efficiency and accuracy processing

3. linear motion bearings give less resistance force and high processing accuracy

4. Stepper motor feeding with ball screw

5 . One time  stroke can cut upto maximum 350 mm .

6 . It can count number of cut .

7. Has option of incremental cutting that means can strike repetetive and then cut ..



Main Features:

Cutting Motor Power 2.2kw

Input voltage 440V 50hz

Main Rotary Speed 2850r/min

Cutter Diameter Inner 30mm Outside blade diameter  500mm

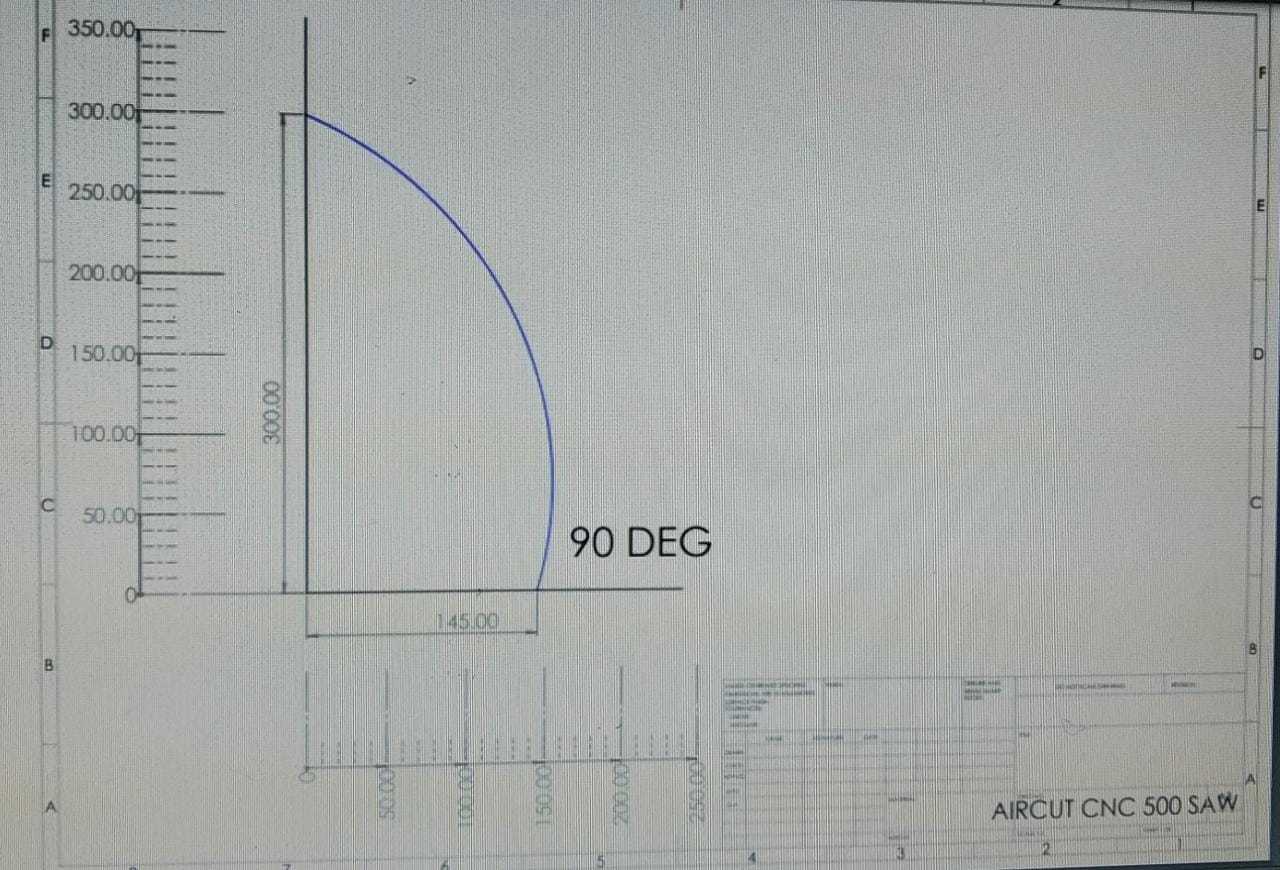

Processing Scale 110*280mm Contour

dimension 1300*1100*1500mm

Weight 450kgs
