SC-101-SINGLE HEAD CORNER WELDING MACHINE NORMAL



Description:

DESCRIPTION -

Relevence with CE standards.

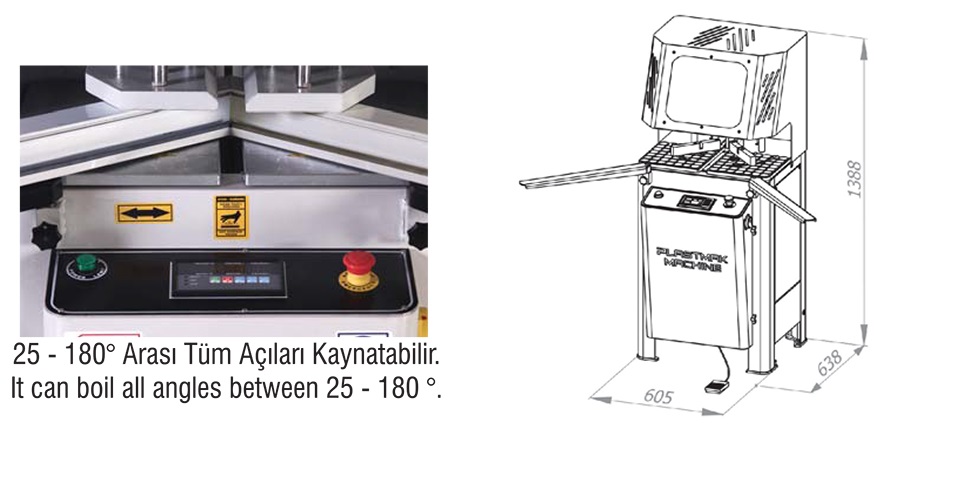

Welding angles-All angle betwenen 25-180

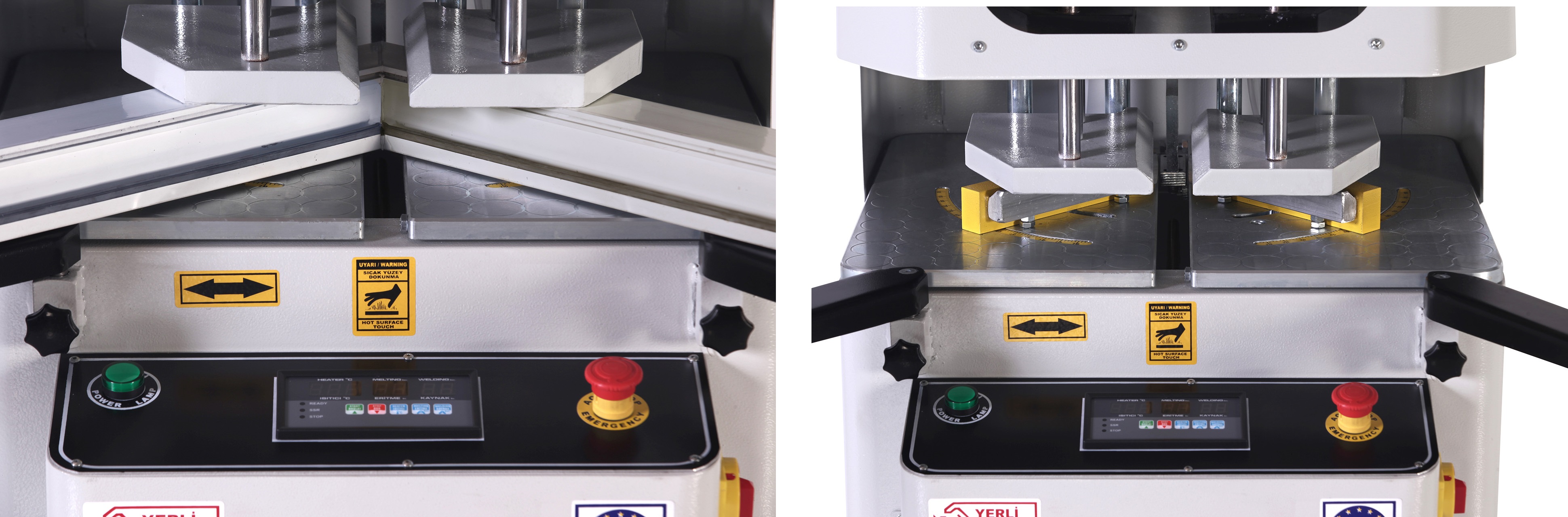

Upper pistons can be clamped individually

Movable left table

Profileclamping is practicaly made by a pedal

Heating unit with thermostic control

Easy to change the degree of heating plate with digital display

Temperature,welding time and pressure adjustment for different type of profile

Easy mold changing system.

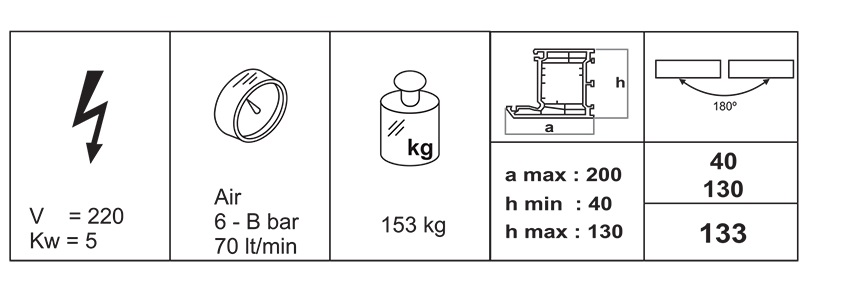

Technical Specifications

  • Power supply: 220 V, 1ph, 50-60 Hz
  • Power output: 4 kW
  • Air pressure: 6-8 bar
  • Air consumption: 70 l/min
  • Profile height max : 200 mm
  • Profile height min : 165 mm
  • Profile width max : 40 mm
