SC-111 - SINGLE CORNER WELDING MACHINE SEAMLESS



Description:

DESCRIPTION -

Relevence with CE standards

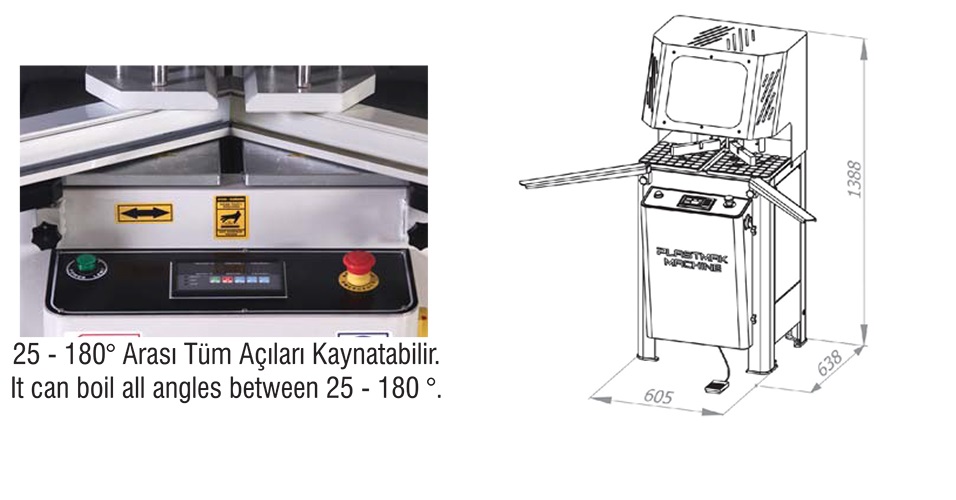

Welding angles-all angle between 25-80

stable heat dissipation and long lasting heating plates

Zero welding features for coated profiles

All the tempreture and time parameter can be adjusted individually

Electro pneumatic control

Easy replacable one-peace teflon

Linear sliding movable table

Capacity of both normal and 0,2mm weldingfor coated profiles.

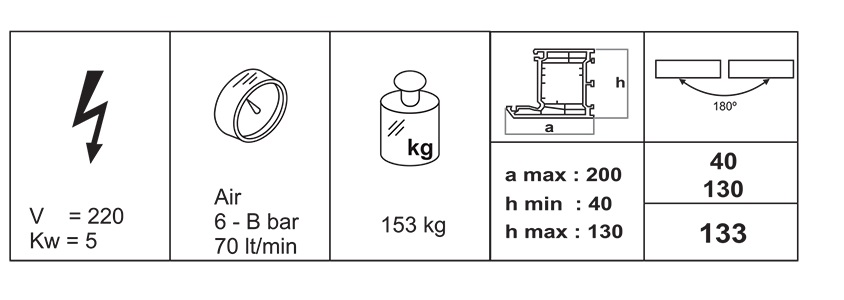

Technical Specifications

  • Power supply: 220 V, 1ph, 50-60 Hz
  • Power output: 4 kW
  • Air pressure: 6-8 bar
  • Air consumption: 70 l/min
  • Profile height max : 200 mm
  • Profile height min : 165 mm
  • Profile width max : 40 mm
