Description:

DESCRIPTION -

Full automatic control
Simplified control panel saves time
Maximum durability of a welding seam
Maximum size of a welded profile 3200 mm
Minimum size of a welded profile 340 mm

Power - 440v,3p,4 kw
Quick detachable system of molds saves time at their replacement
PLC controller by MITSUBISH (Japan)
Heating element has the thermostatic control
Output of heating element temperature on display

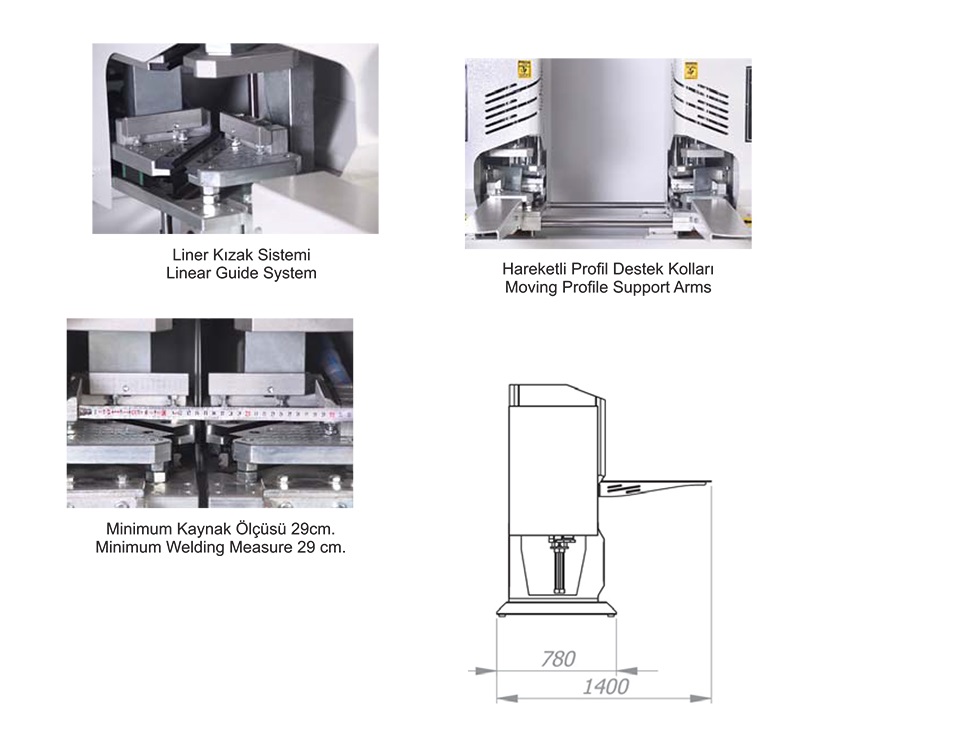

Adjustable supporting arms for profiles
Adjustment of heating temperature, welding time and pressure for different kinds of profile.

In system of pressing of a profile (the top cylinders, mobile plates) the precision system linear directing is used. Systems are represented with a rail with special chutes on which the carriage moves. Contact between a rail and the carriage moves. Contact between a rail and the carriage is provided with four numbers of balls with recirculation

Particular care has been taken over the safety measures, both mechanical and electrical

Power supply protects system from voltage overload.
