SINGLE HEAD RADIAL MITRE SAW DIA 500 - FAZER RT HORIZONTAL 600 MM STROKE



Description:

DESCRIPTION :

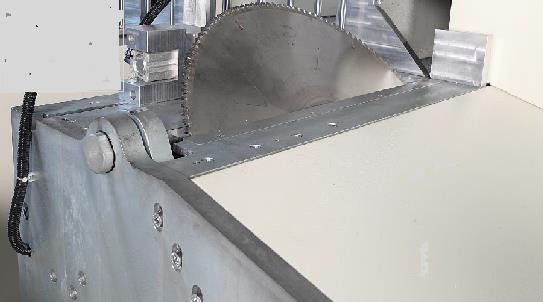

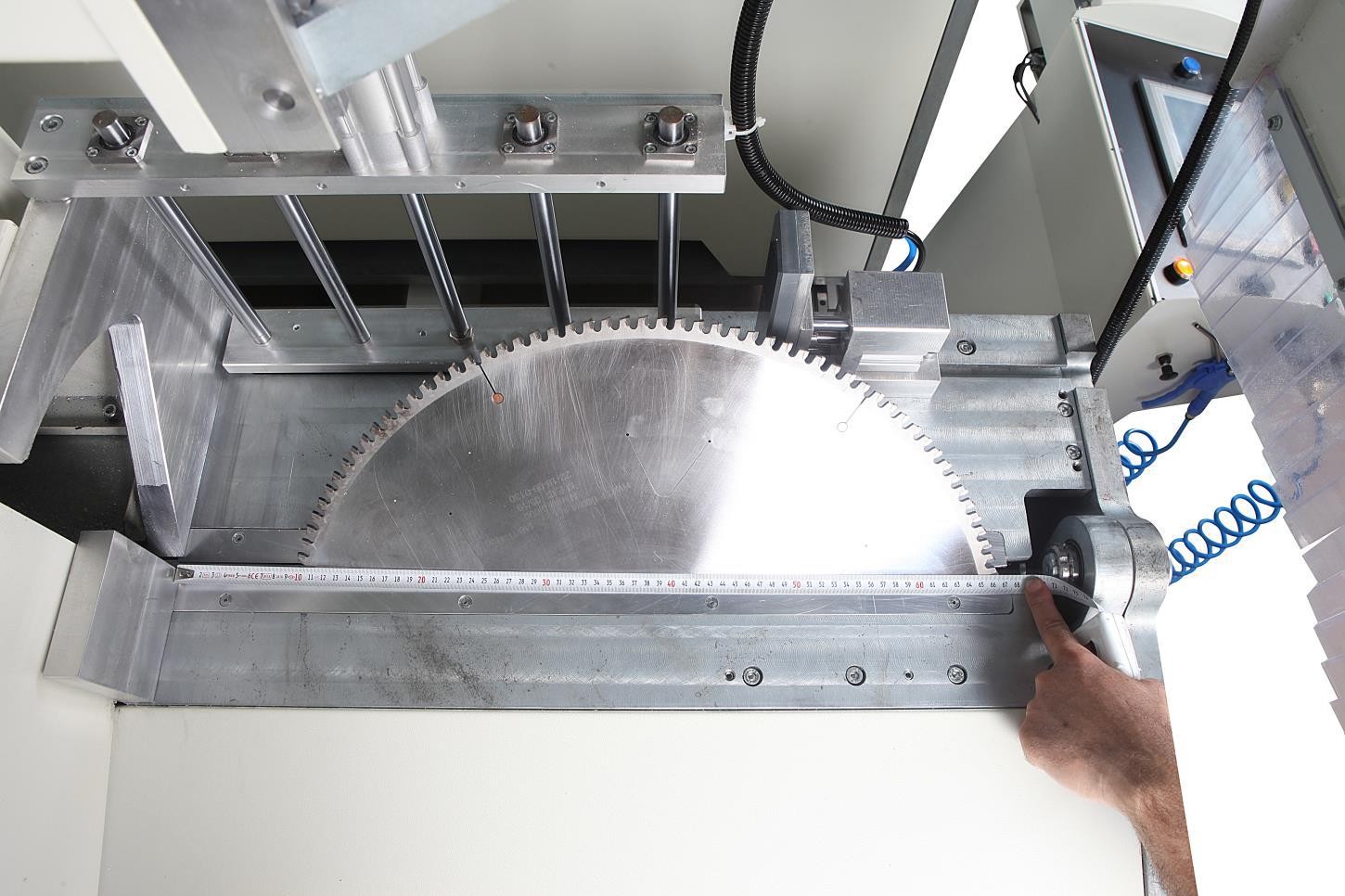

  • Radial movement saw blade machine with 500 mm dia. blade.
  • 4 kW 380 V Three phase motor 50/60 Hz.
  • Blade speed 2800 rpm.

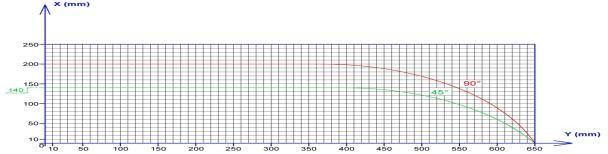

  • Pneumatic head tilting from 90 degree  to 45 degree inwards and intermediate angles with mechanical stop.
  • Movable head is moving on crack Mill + Linear guides (30 mm) brushless servo motor (750W)+ reducer 1/20.
  • Hydropneumatic blade moving (adjustable rising – quick return).
  • Pulse mist Spray cooling system.
  • Protection cover moving automatically up and down.
  • 2 pieces of horizontal and 1 piece of vertical clamping cylinders.
  • Protection relay for the cutting heads movement cycle.

3 meter loading side support roller with 600 MM width to support the profile with adjustable rollers to align and swift movement of profile
